Anviz T60 Bangladesh

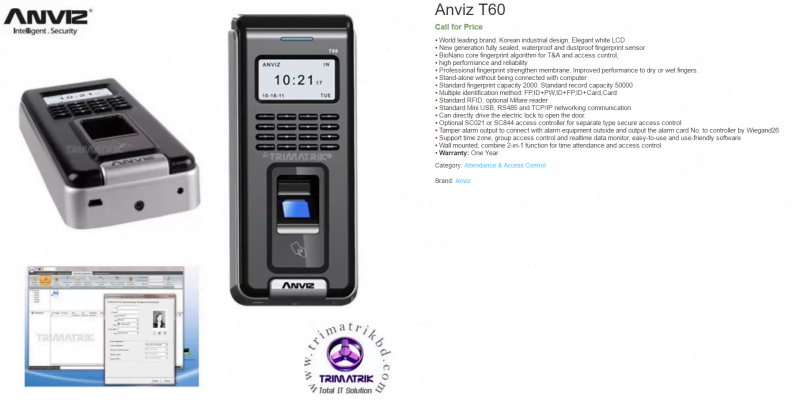

Anviz T60 is a professional fingerprint access control system which fully integrates LCD, keypad, optical fingerprint sensor, card reader and professional access control components. The very compact design makes it suitable for installation on door frame. T60 can be used for both simple access control and separate type secure access control. In addition, T60 has Wiegand input and output, direct lock control, alarm output and doorbell output for a complete access control solution. USB plug and play, RS485 and TCP/IP communication is available for all kinds of installation sites. Optional ID, Mifare and HID card reader is specially designed for the existing card users and higher security level. T60 can work perfectly to meet different demand for access control.

FEATURE

● World leading brand. Korean industrial design. Elegant white LCD
● New generation fully sealed, waterproof and dustproof fingerprint sensor
● BioNano core fingerprint algorithm  for T&A and access control,
● high performance and reliability
● Professional fingerprint strengthen membrane. Improved performance to dry or wet fingers.
● Easy maintenance. 360 degree identification
● Stand-alone without being connected with computer
● Standard fingerprint capacity 2000. Standard record capacity 50000
● Multiple identification method: FP,ID+PW,ID+FP,ID+Card,Card
● Optional RFID, Mifare or HID card reader
● Standard Mini USB, RS485 and TCP/IP networking communication
● Can directly drive the electric lock to open the door.
●Optional SC021 or SC822 access controller for separate type secure access control
● Tamper alarm output to connect with alarm equipment outside and output the alarm card No. to controller by Wiegand26
● Support time zone, group access control and realtime data monitor, easy-to-use and use-friendly software
● Wall mounted, combine 2-in-1 function for time attendance and access control

Item Description
Processor TI high speed CPU
Algorithm BioNANO V10
Sensor AFOS300 Optical Sensor
Scan Area 22mm*18mm
Resolution 500 DPI
LCD 128*64 White LCD
Fingerprint Capacity 2000
Log Capacity 50000
Identification Mode FP, Card, ID+FP, ID+PW, PW+Card, FP+Card
Identification Time <0.5 Sec
FRR 0.001%
FAR 0.00001%
Communication Interface RS485, USB plug &play, TCP/IP, Wiegand In&Out
Card Reader Module Optional 125KHZ EM RFID, 13.56MHZ Mifare and 125KHZ HID
Name Display yes
Fingerprint Image Display yes
Voice Prompt yes
Status 16
Self-defined Status 16
Realtime Transfer yes
Workcode 6-digit word code
Short Message yes
Scheduled Bell yes
Daylight saving yes
Relay 2 Relays
Wiegand Input and Output
Access Groups & Time Schedules 15 Groups, 32 Time Zones
Door Sensor yes
Tamper Alarm Yes
Operating Voltage DC 12V
Size 90(h)*200(w)*35(d)mm
Temperature -10℃~40℃
IP Level IP53(Optional Waterproof Cover)
Certificates FCC, CE
Applicable Situation Up to 2000 Users
