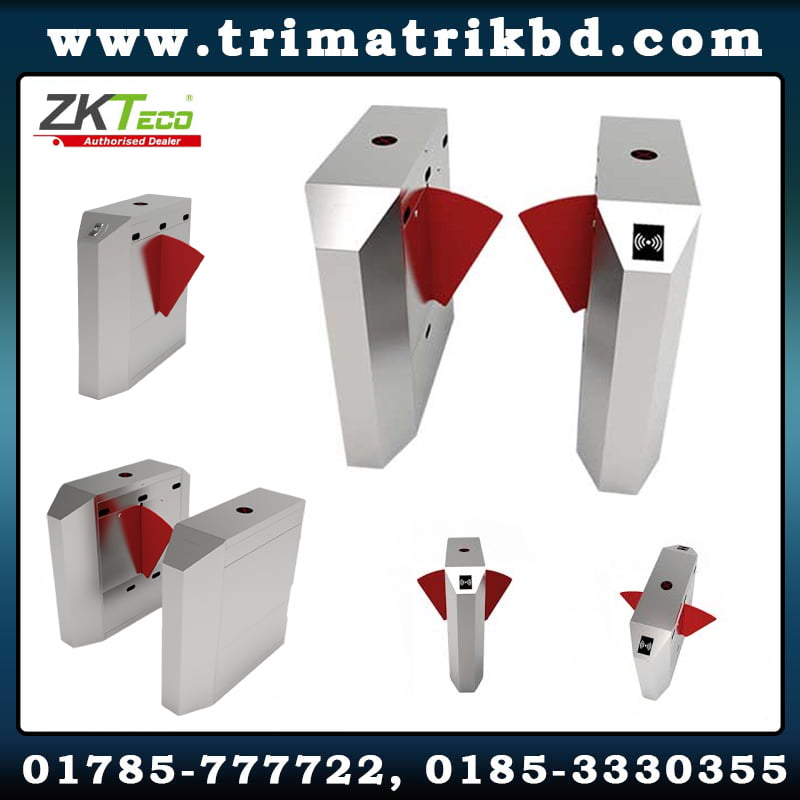

Flap Barrier, A turnstile, also called a baffle gate, is a form of gate which allows one person to pass at a time. It can also be made so as to enforce one-way traffic of people, and in addition, it can restrict passage only to people who insert a coin or finer or card, a ticket, a pass, or similar. Thus a turnstile can be used in the case of paid access (sometimes called a faregate or ticket barrier when used for this purpose), for example to access public transport, a pay toilet, or to restrict access to authorized people, for example in the lobby of an office building.
The FBL4000 Pro is a single lane flap barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL4000 Pro highly durable. FBL4000 Pro barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL4000 Pro’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side. During emergencies the barriers automatically retract upward, thereby ensuring users fast unencumbered exit to safety. A battery for power outage safety can be installed for retracting the barrier automatically. FBL4000 Pro provides both security and convenient space, all in a very durable and elegant compact design.
ZKTeco FBL5022 Pro in BD
The FBL5000 Pro is a single lane flap barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL5000 highly durable.
FBL5000 Pro barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL5000 Pro’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side.
ZKTeco Flap Barrier Gate in Bangladesh:
During emergencies, the barriers automatically retract upward, thereby avoid users being trapped. A capacitor board for power outage safety can be installed for retracting the barrier automatically. FBL5000 Pro provides both security and convenient space, all in a very durable and elegant compact design.
| Power requirements |
AC 100 ~ 120V/200 ~ 240V, 50/60Hz |
| Working temperature |
-28℃ ~ 60℃ |
| Working humidity |
5% ~ 80% |
| Working environment |
Indoor/outdoor (if sheltered) |
| Speed of throughput |
RFID |
Maximum 30/ minute |
| Fingerprint |
Maximum 25/ minute |
| Lane width(mm) |
600 |
| Footprint(mm*mm) |
1200*1200 |
| Dimensions(mm) |
L=1200,W=300,H=1010 |
| Dimension with packing(mm) |
L=1400,W=840,H=1110 |
| Net weight(kg) |
126 |
| Weight with packing(kg) |
196 |
| LED indicator |
Y |
| Cabinet material |
SUS304 Stainless Steel |
| Lid material |
Tempered Glass |
| Barrier material |
Acrylic |
| Barrier movement |
Retracting |
| Emergency mode |
Y |
| Security level |
Medium |
| MCBF |
2 million |
ZKTeco FBL5222 Pro in Bangladesh
The FBL5200 Pro is a Flap Barrier Turnstile for additional Lane series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL5200 Pro highly durable.
FBL5200 Pro barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL5200 Pro’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side.
During emergencies, the barriers automatically retract upward, thereby avoid users being trapped. A capacitor board for power outage safety can be installed for retracting the barrier automatically. FBL5200 Pro provides both security and convenient space, all in a very durable and elegant compact design.
| Power requirements |
AC 100 ~ 120V/200 ~ 240V, 50/60Hz |
| Working temperature |
-28℃ ~ 60℃ |
| Working humidity |
5% ~ 80% |
| Working environment |
Indoor/outdoor (if sheltered) |
| Speed of throughput |
RFID |
Maximum 30/ minute |
| Fingerprint |
Maximum 25/ minute |
| Lane width(mm) |
600 |
| Footprint(mm*mm) |
1200*840 |
| Dimensions(mm) |
L=1200, W=300, H=1010 |
| Dimension with packing(mm) |
L=1400, W=400, H=1100 |
| Net weight(kg) |
81 |
| Weight with packing(kg) |
116 |
| LED indicator |
Y |
| Cabinet material |
SUS304 Stainless Steel |
| Lid material |
Tempered Glass |
| Barrier material |
Acrylic |
| Barrier movement |
Retracting |
| Emergency mode |
Y |
| Security level |
Medium |
| MCBF |
2 million |
ZKTeco FBL4222 Pro in Bangladesh
The FBL4200 Pro is a Flap Barrier Turnstile for additional Lane series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL4200 highly durable.
FBL4200 Pro barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL4200 Pro’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side.
During emergencies, the barriers automatically retract upward, thereby avoid users being trapped. A capacitor board for power outage safety can be installed for retracting the barrier automatically. FBL4200 Pro provides both security and convenient space, all in a very durable and elegant compact design.
| Power requirements |
AC 100 ~ 120V/200 ~ 240V, 50/60Hz |
| Working temperature |
-28℃ ~ 60℃ |
| Working humidity |
5% ~ 80% |
| Working environment |
Indoor/outdoor (if sheltered) |
| Speed of throughput |
RFID |
Maximum 30/ minute |
| Fingerprint |
Maximum 25/ minute |
| Lane width(mm) |
600 |
| Footprint(mm*mm) |
1350*840 |
| Dimensions(mm) |
L=1350, W=300, H=1010 |
| Dimension with packing(mm) |
L=1500, W=400, H=1100 |
| Net weight(kg) |
84 |
| Weight with packing(kg) |
119 |
| LED indicator |
Y |
| Cabinet material |
SUS304 Stainless Steel |
| Lid material |
SUS304 Stainless Steel |
| Barrier material |
Acrylic |
| Barrier movement |
Retracting |
| Emergency mode |
Y |
| Security level |
Medium |
| MCBF |
2 million |
ZKTeco FBL1011 Bangladesh
The ZKTeco FBL1000 single lane flap barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume.
The FBL1000 is a single lane flap barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL1000 highly durable. FBL1000 barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL1000’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side.
During emergencies the barriers automatically retract upward, thereby ensuring users FAST unencumbered exit to safety. A battery for power outage safety can be installed for retracting the barrier automatically.
FBL1000 provides both security and convenient space, all in a very durable and elegant compact design.
ZKTeco Flap Barrier in BD
|
| Power requirements |
AC 100 ~ 120V/200 ~ 240V, 50/60Hz |
| Working temperature |
-28℃~60℃ |
| Working humidity |
5%~80% |
| Working environment |
Indoor/outdoor (if sheltered) |
|
RFID |
Maximum 42/ minute |
| Speed of throughput |
Fingerprint |
Maximum 35/ minute |
|
Face |
Maximum 11/ minute |
|
Vein |
Maximum 23/ minute |
| Lane width(mm) |
600 |
| Footprint(mm*mm) |
1200*870 |
| Dimensions(mm) |
L=870,W=300,H=1000 |
| Dimension with packing(mm) |
L=1000,W=840,H=1090 |
| Net weight(kg) |
97 |
| Weight with packing(kg) |
153 |
| LED indicator |
Y |
| Cabinet material |
SUS304 Stainless Steel |
| Lid material |
SUS304 Stainless Steel |
| Barrier material |
Acrylicl |
| Barrier movement |
Retracting |
| Emergency mode |
Y |
| Security level |
Medium |
| MCBF |
2 million |
