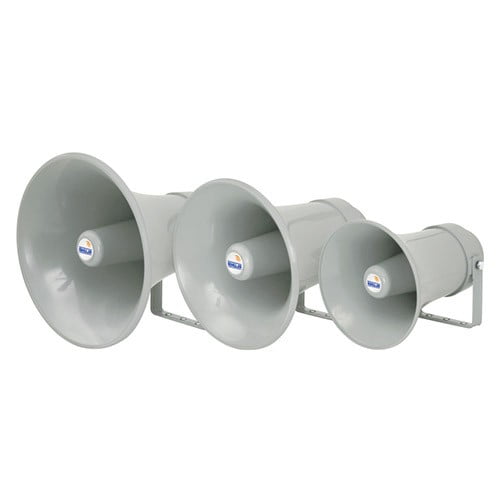

AHUJA UHC SERIES SPEAKERS PA HORN SPEAKERS
Call for Price
- Ahuja high quality, weather proof horn speakers are compact, light weight and rugged. They are moulded in tough UV protected ABS plastic for longer lasting finish.
- The specifications and construction of these are similar to the low impedance horn speakers. These models have been provided with 100V line matching transformers with multiple taps/impedance easily selectable by changing the position of the rotary switch at the rear of the sealed assembly.
- These 100V models are ideal for installations where long speaker cables are used, to avoid power loss in the cables.
- They meet European Union regulations and comply with low voltage directive standard EN 60065. Degree of protection
- IP 66 is provided against foreign particles such as dust and jets of water, thus making them ideal for outdoor use.
Description
| UHC-30XT | . |
| Input Power | 30W RMS/45W Max. |
| Power Taps | 30/25/20/15/10/5W |
| Impedance | 330/400/500/670/1k/2kΩ |
| Frequency Response | 240-10,000Hz |
| SPL at 1kHz | 108dB/1W/1m, 123dB/30W/1m |
| Dimensions | ø313 (L315) mm |
| Weight | 2.39kg |
| Material | ABS (UV Protected) |
| UHC-25XT | . |
| Input Power | 25W RMS/38W Max. |
| Power Taps | 25/20/15/10/5W |
| Impedance | 400/500/670/1k/2kΩ |
| Frequency Response | 250-10,000Hz |
| SPL at 1kHz | 108dB/1W/1m, 122dB/25W/1m |
| Dimensions | ø274 (L310) mm |
| Weight | 2.34kg |
| Material | ABS (UV Protected) |
| UHC-15XT | . |
| Input Power | 15W RMS/23W Max. |
| Power Taps | 15/10/5/2.5W |
| Impedance | 670/1k/2k/4kΩ |
| Frequency Response | 275-7,000Hz |
| SPL at 1kHz | 106dB/1W/1m, 118dB/15W/1m |
| Dimensions | ø205 (L270) mm |
| Weight | 1.78kg |
| Material | ABS (UV Protected) |
