Bosch MW1-LTX-F5 + MW1-RX-F5 Wireless Microphone System in Bangladesh

Batteries: 2 x LR6/AA/UM3 1.5 V
Battery lifetime Approx. 15 hrs
Modulation: FM frequency modulation
Frequency selection: PLL synthesized control
Frequency Range: 722 to 746 MHz
Channels: 193 channels in steps of 125 kHz
Frequency Stability: ±0.005%
Frequency Deviation: ± 48 kHz
S/N Ratio: >102 dB
RF output: 10 mW
Spurious Rejection: >60 dBc
Dynamic Range: >110 dB
Response: 50 Hz – 15 kHz

Lavalier microphone
Connector Mini XLR (tiny QG)
Frequency range 100 Hz to 12 kHz
Polar Pattern Cardioid
Sensitivity (at 1 kHz) -70 dB ± 3 dB
Impedance 2.2 kohm ±30%
Max SPL for 1% THD 130 dB(SPL)

Belt-pack
Dimensions (H x W x D): 105 x 78 x 34 mm, without antenna
Color: Charcoal
Weight:176 g
Antenna: Flexible

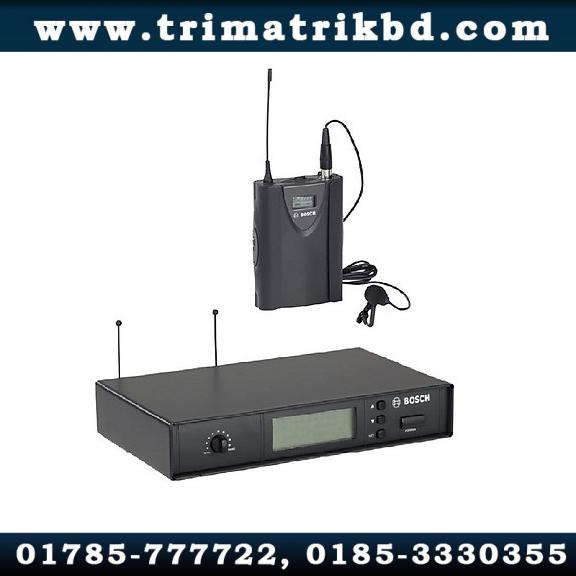

Bosch MW1-LTX-F5 + MW1-RX-F5 Wireless Microphone System in Bangladesh

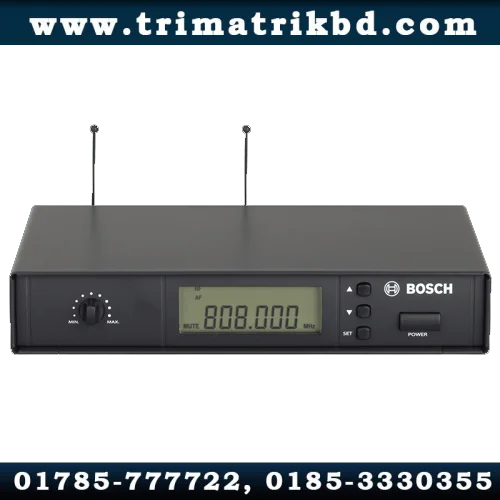

The MW1-LTX-F1 is a belt-pack transmitter, part of the Bosch wireless microphone system. The complete system consists of a microphone receiver MW1-RX-F1, wireless handheld microphone MW1-HTX-F1, and a wireless belt-pack transmitter with clip-on lavalier microphone MW1-LTX-F1. The wireless microphone system is designed for a public address in houses of worship, restaurants, conference centers, hotels, shops, and many other applications.
