1200BP
1200BP

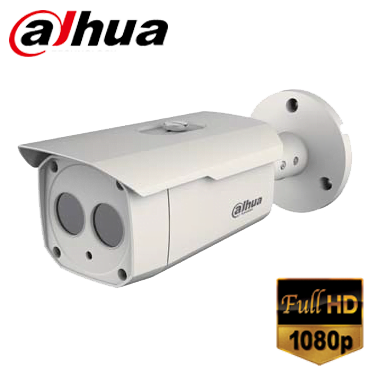

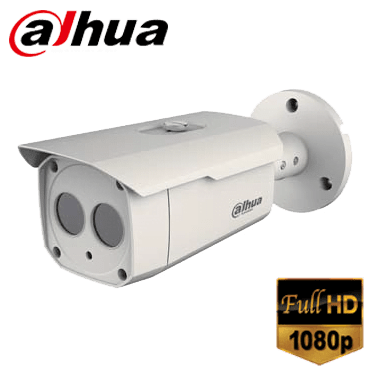

Dahua DH-HAC-HFW1200BP

Call for Price

>1/2.7″ 2Megapixel CMOS
>25/30fps@1080P
>High speed, long distance real-time transmission
>Day/Night(ICR), AWB, AGC, BLC, 2DNR
>3.6mm fixed lens (6mm, 8mm optional)
>Max. IR LEDs length 50m, Smart IR
>IP67, DC12V

Description

Model DH-HAC-HFW1200BP DH-HAC-HFW1200BN
Camera
Image Sensor 1/2.7″ 2Megapixel CMOS
Effective Pixels 1920(H)×1080(V)
Electronic Shutter 1/25~1/100000s 1/30~1/100000s
Video Frame Rate 25/50fps@720P; 25fps@1080P 30/60fps@720P; 30fps@1080P
Synchronization Internal
Min. Illumination 0.02Lux/F2.0, 0Lux IR on
Video Output 1-channel BNC high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Max. IR LEDs Length 50m, Smart IR
Backlight Compensation DWDR
Day/Night Auto(ICR)/Color/B/W
Noise Reduction 2D
OSD Menu Support
Lens
Focal length 3.6mm (6mm, 8mm optional)
Angle of View H:89.9º(59.4º/41.4º)
Mount Type M12
General
Power Supply DC12V±25%
Power Consumption Max 4.8W
Working Environment -40°C~+60°C/ Less than 95%RH (no condensation)
Transmission Distance Over 500m via 75-3 coaxial cable
Ingress Protection IP67
Dimensions(W×D×H) 241.8mm×90.2mm×83.7mm
Weight 0.628kg
Material Metal
