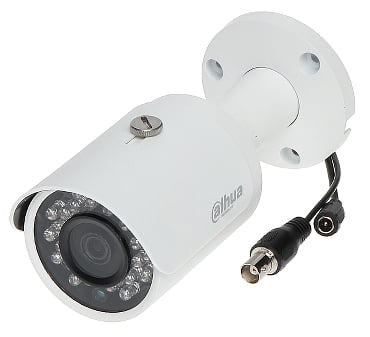

Dahua DH-HAC-HFW1200S

Dahua DH-HAC-HFW1200S

Call for Price

>1/2.7″ 2Megapixel CMOS
>25/30fps@1080P, 25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and SD switchable
>OSD Menu, control over coaxial cable
>DWDR, Day/Night(ICR), AWB, AGC, BLC, 2DNR
>3.6mm fixed lens (6mm optional)
>Max. IR LEDs length 30m, Smart IR
>IP67, DC12V

Description

Model DH-HAC-HFW1200SP DH-HAC-HFW1200SN
Camera
Image Sensor 1/2.7″    2Megapixel CMOS
Effective Pixels 1920(H)×1080(V)
Electronic Shutter 1/25~1/100000s 1/30~1/100000s
Video Frame Rate 25/50fps@720P;    25fps@1080P 30/60fps@720P;    30fps@1080P
Synchronization Internal
Min. Illumination 0.02Lux/F2.0,    0Lux IR on
Video Output 1-channel    BNC high definition video output/ CVBS standard definition video output (Can    switch)
Camera    Features
Max. IR    LEDs Length 30m,    Smart IR
Backlight    Compensation DWDR
Day/Night Auto(ICR)    / Color / B/W
Noise Reduction 2D
OSD Menu Support
Lens
Focal length 3.6mm    (6mm optional)
Angle of View H: 89.9º(59.4º)
Mount Type M12
General
Power Supply DC12V±25%
Power Consumption Max 4W
Working Environment -40°C~+60°C / Less than 95%RH (no    condensation)
Transmission Distance Over 500m via 75-3 coaxial cable
Ingress Protection IP67
Dimensions(W×D×H) Φ70mm×165mm
Weight 0.35kg
Material Metal    (body) + Plastic (sunshield)
