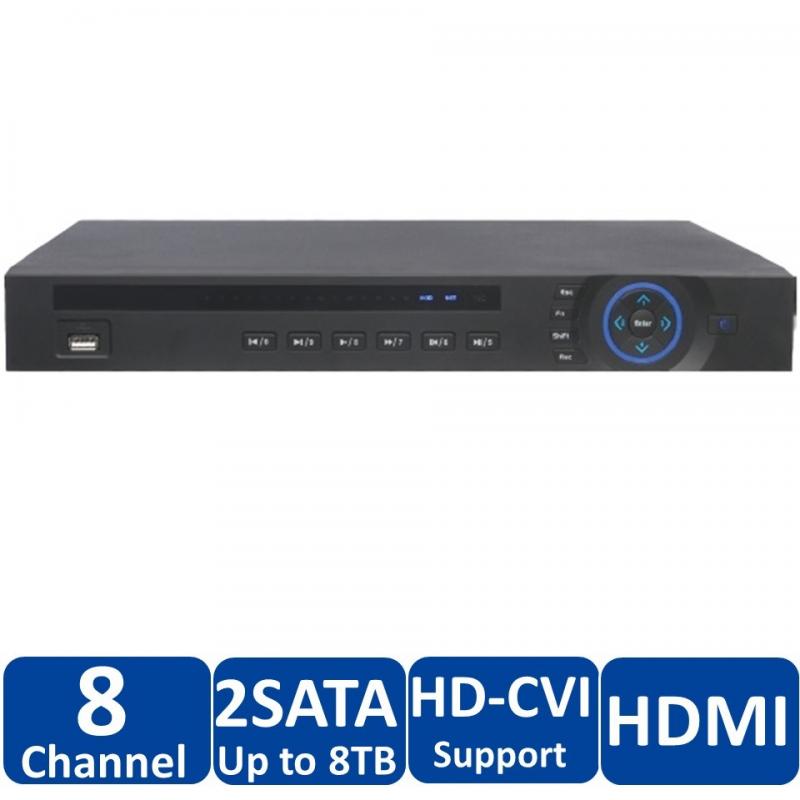

Dahua DH-HCVR5208A-S2
Call for Price
- Support HDCVI/Analog/IP Video input
- H.264 dual-stream video compression
- HCVR5204/5208/5216A-S2: All channel 720P realtime or 1080P non-realtime recording
- HDMI/VGA simultaneous video output
- 4/8/16 channel synchronous realtime playback, GRID interface & smart search
- Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
- ONVIF Version 2.4 conformance
- Support 2 SATA HDDs up to 8TB, 2 USB2.0
- 3D intelligent positioning with Dahua PTZ dome camera
- Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
Description
Dahua DH-HCVR5208A-S2 Bangladesh
| Model | DH-HCVR5204A-S2 | DH-HCVR5208A-S2 | DH-HCVR5216A-S2 | ||||
| System | |||||||
| Main Processor | Embedded processor | ||||||
| Operating System | Embedded LINUX | ||||||
| Video | |||||||
| Input | 4 channel, BNC | 8 channel, BNC | 16 channel, BNC | ||||
| Standard | Analog | NTSC/PAL | |||||
| HDCVI | 1080P/720P HDCVI Camera | ||||||
| IP | Support 2ch 1080P/720P IP Camera | ||||||
| Audio | |||||||
| Input | 4 channel, RCA | ||||||
| Output | 1 channel, RCA | ||||||
| Two-way Talk | Reuse audio input/output channel 1 | ||||||
| Display | |||||||
| Interface | 1 HDMI, 1 VGA | ||||||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | ||||||
| Display Split | 1/4 | 1/4/8/9 | 1/4/8/9/16 | ||||
| Privacy Masking | 4 rectangular zones (each camera) | ||||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording Dahua DH-HCVR5208A-S2 Bangladesh | ||||||
| Recording | |||||||
| Video/Audio Compression | H.264/G.711 | ||||||
| Record Rate | Main Stream: | 1080P(1~15fps)/720P/960H/D1 (1~25/30fps) | |||||
| Extra Stream | CIF/QCIF(1~25/30fps), D1 | ||||||
| Bit Rate | 96~4096Kb/s | ||||||
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | ||||||
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||||||
| Video Detection & Alarm | |||||||
| Trigger Events | Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | ||||||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||||||
| Alarm Input | 8 channel | 8 channel | 16 channel | ||||
| Relay Output | 3 channel | ||||||
| Playback & Backup | |||||||
| Sync Playback | 1/4 | 1/4/9 | 1/4/9/16 | ||||
| Search Mode | Time/Date, MD & Exact search (accurate to second) | ||||||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom Dahua DH-HCVR5208A-S2 Bangladesh | ||||||
| Backup Mode | USB Device/Internal SATA burner/Network | ||||||
| Network | |||||||
| Ethernet | RJ-45 port (10/100M) | RJ-45 port (10/100M/1000M) | |||||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P | ||||||
| Max. User Access | 128 users | ||||||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||||||
| Storage | |||||||
| Internal HDD | 2 SATA ports, up to 8TB | ||||||
| Auxiliary Interface | |||||||
| USB Interface | 2 ports(1 Rear), USB2.0 | ||||||
| RS485 | 1 port, For PTZ control | ||||||
| General | |||||||
| Power Supply | DC12V/4A | DC12V/5A | |||||
| Power Consumption | 15W(without HDD) | ||||||
| Working Environment | -10°C ~+55°C / 10%~90%RH / 86~106kpa | ||||||
| Dimension(W×D×H) | 1U, 375mm×285mm×55mm | ||||||
| Weight | 2.35KG(without HDD) | ||||||
