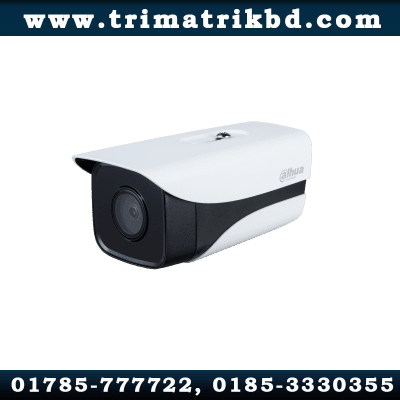

IPC-HFW3441M-AS-I2 4MP IR Fixed focal Bullet WizSense Network Camera
IPC-HFW3441M-AS-I2 4MP IR Fixed focal Bullet WizSense Network Camera

Dahua IPC-HFW3441M-AS-I2 4MP IR Fixed focal Bullet WizSense Network Camera

৳ 0.00

> 4MP, 1/3” CMOS image sensor, low illuminance, high image definition

> Outputs max. 4MP (2688 × 1520)@30 fps

> H.265 codec, high compression rate, low bit rate

> Built-in IR LED, max. IR distance: 80 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)

> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection

> Alarm: 2 in, 2 out; Audio: In, out; supports max. 256 G Micro SD card

> 12V DC/PoE power supply, 12V power output, max. current 165mA

> IP67 protection

> SMD Plus

Description

Dahua IPC-HFW3441M-AS-I2

Camera
Image Sensor 1/3” 4Megapixel progressive CMOS
Max. Resolution 2688 (H) ×1520 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.005 [email protected] (Color, 30IRE)

0.0005 [email protected] (B/W, 30IRE)

0 Lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 80 m (262.5 ft)
Illuminator On/Off Control Auto/Manual
IR LEDs Number 2 (IR LED)
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 3.6 mm; 6 mm; 8 mm; 12 mm
Max. Aperture 3.6 mm, 6 mm, 8 mm: F1.6
12 mm: F2.0
Field of View 3.6 mm: Horizontal: 84°; vertical: 45°; diagonal: 100°

6 mm: Horizontal: 52°; vertical: 28°; diagonal: 61°

8 mm: Horizontal: 40°; vertical: 23°; diagonal: 45°

12 mm: Horizontal: 24°; vertical: 14°; diagonal: 29°
Iris Type Fixed
Close Focus Distance 3.6 mm: 1.6 m (5.2 ft)
6 mm: 3.2 m (10.5 ft)
8 mm: 4.5 m (14.8 ft)
12 mm: 10.3 m (33.8 ft)
DORI Distance Lens Detect Observe Recognize Identify
3.6mm 80.0 m

(262.5 ft)

 32.0 m

(105.0 ft)

 16.0 m

(52.5 ft)

 8.0 m

(26.3 ft)
6mm 120.0 m (393.7 ft) 48.0 m

(157.5 ft)

 24.0 m

(78.7 ft)

 12.0 m (39.4ft)
8 mm 160.0 m (524.9 ft) 64.0 m

(210.0 ft)

 32.0 m

(105.0 ft)

 16.0 m

(52.5 ft)
12 mm 240 m

(787.4 ft)

 96 m

(315.0 ft)

 48 m

(157.5 ft)

 24 m

(78.7 ft)
Professional, Intelligent
Perimeter Protection Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG(only supported

by sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream (2688 × 1520@1–25/30 fps)
sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps)
third stream (1280 × 720@1–25/30 fps)
Stream Capability 3 streams
Resolution 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Audio
Audio Compression G.711a; G.711Mu; G726
Alarm
Alarm Event No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; input abnormal; intensity change; tripwire; intrusion; SMD
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;

Genetec
Scene Self-adaptation (SSA) Yes
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD Card (support max. 256 G); NAS
Browser IE: IE8, IE9, IE11

Chrome

Firefox
Management Software Smart PSS, DSS, DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input 1-channel (RCA port)
Audio Output 1-channel (RCA port)
Alarm Input 2 channels in: 5mA 3V–5V DC
Alarm Output 2 channels out: 300mA 12V DC
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption <11.6W
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than 95%
Storage Conditions -40°C to +60°C (-40°F to +140°F)
Protection Grade IP67
Structure
Casing Metal + Plastic
Dimensions 194.4 mm × 96.6 mm × 89.5 mm

(7.7″ × 3.8″ × 3.5″) (L × W × H)
Net Weight 755g (1.7 lb)
Gross Weight 875g (1.9 lb)
IPC-HFW3441M-AS-I2 4MP IR Fixed focal Bullet WizSense Network Camera
IPC-HFW3441M-AS-I2
4MP IR Fixed focal Bullet WizSense Dahua Network Camera

IPC-HFW3441M-AS-I2

4MP, 1/3” CMOS image sensor, low illuminance, high image definition, Outputs max. 4MP (2688 × 1520)@30 fps; H.265 codec, high compression rate, low bit rate; Built-in IR LED, max. IR distance: 80 m
