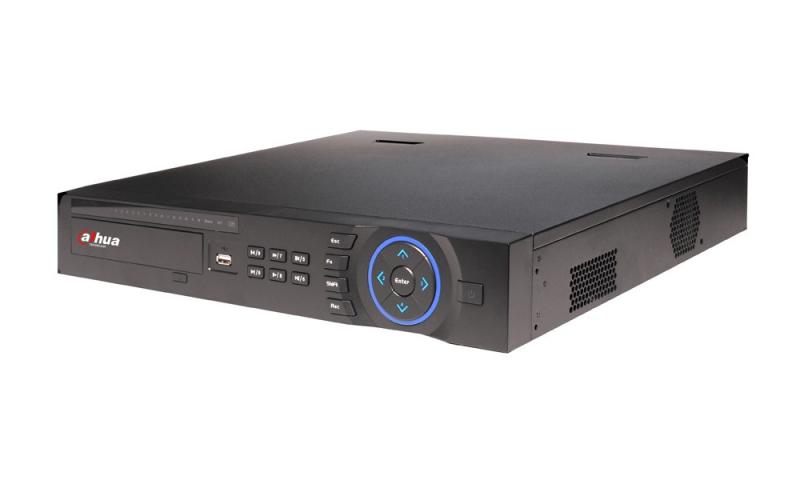

Dahua Model:DVR5416A
Call for Price
>Up to 4/8/16 cameras with 1080p realtime preview
>H.264 dual-stream video compression
>All channel @960H realtime recording
>Support A/D switch
>HDMI/VGA/TV/Spot simultaneous video output
>4/8/16 channel synchronous realtime playback, GRID interface & smart search
>3D intelligent positioning with Dahua PTZ dome camera
>Support 4 SATA HDDs up to 16TB,1 eSATA up to 4TB, 2 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
Description
| Model | DH-DVR5404 | DH-DVR5408 | DH-DVR5416 | ||||
| System | |||||||
| Main Processor | Embedded processor | ||||||
| Operating System | Embedded LINUX | ||||||
| Video | |||||||
| Input | 4 channel, BNC | 8 channel, BNC | 16 channel, BNC | ||||
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | ||||||
| Audio | |||||||
| Input | 4 channel, BNC | ||||||
| Output | 1 channel, BNC | ||||||
| Two-way Talk | 1 channel Input, 1 channel Output(Reuse the audio output channel), BNC | ||||||
| Display | |||||||
| Interface | 1 HDMI, 1 VGA, 1 TV, 1 Spot, BNC | ||||||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | ||||||
| Display Split | 1/4 | 1/4/8/9 | 1/4/8/9/16 | ||||
| Privacy Masking | 4 rectangular zones (each camera) | ||||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||||
| Recording | |||||||
| Video/Audio Compression | H.264/G.711 | ||||||
| Image Resolution | 960H(960×576/960×480)/D1/4CIF(704×576/704×480)/HD1(352×576/352×480)/2CIF(704×288/704×240) / CIF(352×288/352×240) /QCIF(176×144/176×120) | ||||||
| Record Rate | Main Stream | 960H/D1/HD1/2CIF/CIF(1~25/30fps) | |||||
| Extra Stream | QCIF(1~25/30fps)/CIF(1~6/7fps) | ||||||
| Bit Rate | 48~3072Kb/s | ||||||
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | ||||||
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||||||
| Video Detection & Alarm | |||||||
| Trigger Events | Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips | ||||||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||||||
| Alarm Input | 4 channel | 8 channel | 16 channel | ||||
| Relay Output | 3 channel | ||||||
| Playback & Backup | |||||||
| Sync Playback | 1/4 | 1/4/9 | 1/4/9/16 | ||||
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | ||||||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||||||
| Backup Mode | USB Device/Network/Internal SATA burner/eSATA Device | ||||||
| Network | |||||||
| Ethernet | RJ-45 port (10/100M/1000M) | ||||||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server, SNMP, P2P | ||||||
| Max. User Access | 128 users | ||||||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||||||
| Storage | |||||||
| Internal HDD | 4 SATA ports(4HDDs or 3HDDs+1CD/DVD-RW), up to 16TB | ||||||
| External HDD | 1 eSATA port, up to 4TB | ||||||
| Auxiliary Interface | |||||||
| USB Interface | 2 ports (1 Rear), USB2.0 | ||||||
| RS232 | 1 port, For PC communication & Keyboard | ||||||
| RS485 | 1 port, For PTZ control | ||||||
| General | |||||||
| Power Supply | AC100~240V, 50/60Hz | ||||||
| Power Consumption | 25W | 30W | 40W | ||||
| Working Environment | -10°C ~+55°C/10%~90%RH / 86~106kpa | ||||||
| Dimension(W×D×H) | 1.5U, 440mm×416mm×68mm | ||||||
| Weight | 6.0KG(without HDD) | ||||||
