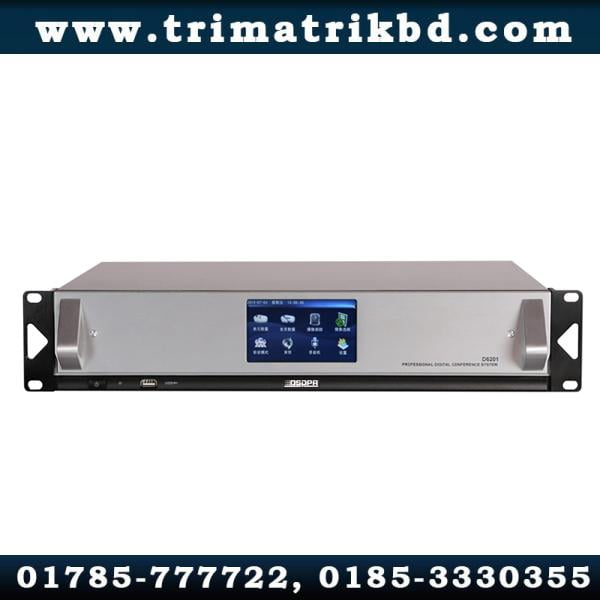

DSPPA D7201 Full Digital Conference System Host
Call for Price
● With 4.3 inch TFT screen, friendly graphical interface;
● With multiple functional interface: 1 input; 1 unbalanced and 2 balanced output; 6 HDMI and 1 HDMI video output;
● Integrate conference, discussion, sign-in, voting, electronic nameplate and other functions, support up to 4096 conference units;
● Support conference recording, manually or automatically;
● FIFO/ NORMAL/ VOICE/ FREE/ APPLY 5 conference modes,
Description
DSPPA D7201 Full Digital Conference System Host Bangladesh :
Based on the Dante digital transmission protocol and PoE power supply technology, D72 Digital Conference System provides customers with a high-fidelity, low-latency, brand-new conference solution and adopts a distributed architecture. The wiring is simple to construct, and the units can be connected by cascade in a ring or connected to the PoE switch with network cables. The system is highly compatible and perfectly suitable for products that support the Dante protocol. The conference host integrates hot backup function, simultaneous interpretation, conference discussion, personnel sign-in, voting, electronic nameplate, conference service, camera tracking and other functions. It meets the functional requirements of digitalization, modularization, integration, convenience and intelligence of modern digital conference system.
DSPPA D7201 in BD :
| Item | Parameters |
| LINE IN voltage | 250±50mV |
| ALARM IN voltage | 250±50mV |
| LINE OUT voltage | 1000±100 mV |
| BALANCE OUT voltage | 2000±100 mV |
| Frequency response | 30Hz-20kHz（±3dB） |
| SNR | ≥80dB |
| Distortion | ≤0.5% |
| Maximum output power | 90W，4-channel PoE+48V power supply |
| Static power | ≤30W |
| Power supply | AC220V/50Hz/350W |
| Package dimension (L×W×H) | 525×480×185mm |
| Machine dimension (L×W×H) | 483×385×88 mm |
| Gross weight | 6.9kg |
| Net weight | 6.3kg |
