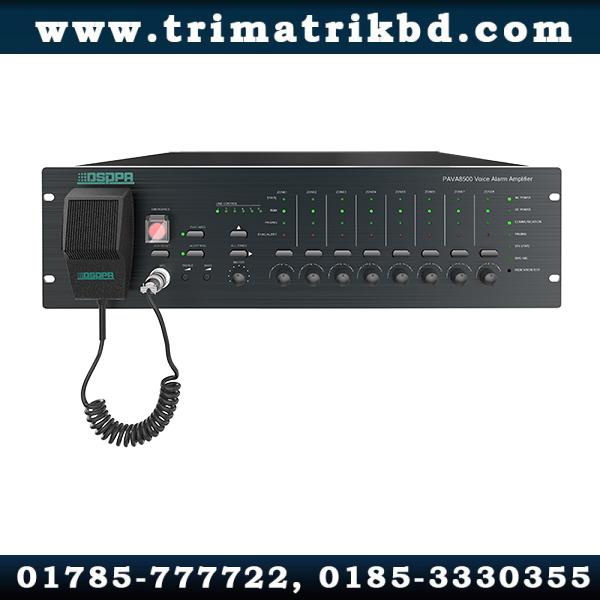

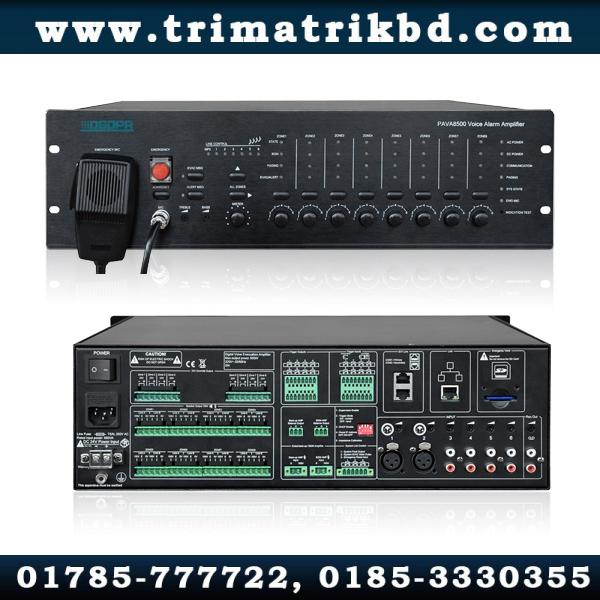

DSPPA PAVA8500 8 Zones Integrated Voice Alarm PA System Centre
Call for Price
● 8 zones speaker output(could be extended up to 1000 zones)
● Built in 500W digital amplifier,integrated Dante technology
● One button alarm, built in EVAC message & Chime
● Support line detection of speakers (heavy load or short circuit or open circuit)
● 8 Zones speaker output with individual volume control
● Support remote Mic zones or group paging
● DC battery backup monitoring
Description
DSPPA PAVA8500 8 Zones Integrated Voice Alarm PA System Centre in Bangladesh
EN54-16 is a Integrated Voice Alarm PA System which supports timing programming and manual operation, and is manually prioritized; it supports real-time detection of equipment operation status and operation log records. It meets the standards of “EN54 – Part 16 Voice Alarm Control and Indicating Equipment” Automatic Control System for Fire Protection”. This broadcast system can be used in fire emergency broadcast, daily business broadcast and background broadcast. It is a small emergency broadcast system, mainly used in small shopping malls, office buildings and exhibition halls.
8 zones speaker output(could be extended up to 1000 zones)
Built in 500W digital amplifier,integrated Dante technology
One button alarm, built in EVAC message & Chime
Support line detection of speakers (heavy load or short circuit or open circuit)
8 Zones speaker output with individual volume control
Support remote Mic zones or group paging
DC battery backup monitoring
Real time monitor with EMC microphone for emergency situation avacuation
8 dry contact trigger input/output, DC24V override output
Support 100V Speaker AB line outputs with impedance supervision
Support PC control and buillt-in timer
Comply with EN54-16 requirements
DSPPA PAVA8500 in Bangladesh
| Model | PAVA8500 | PAVA8500E | |||
| Rated output power | ≥500W（100V） | ||||
| Input sensitivity | Emergency mic | 5mV 600Ω | —— | ||
| Line | 1000mV 10kΩ | ||||
| Harmonic distortion | Emergency mic | <1% 1kHz | —— | ||
| Line | <1% 1kHz | ||||
| Freq. response | Emergency mic | 80Hz-15kHz（±3dB） | —— | ||
| Line | 50Hz-18kHz（±3dB） | ||||
| Signal to noise ratio | Emergency mic | >70dB（A weighting） | —— | ||
| Line | >80dB（A weighting） | ||||
| Line output | Output voltage | 1000mV | —— | ||
| Frequency range | 80Hz-15kHz（±3dB） | —— | |||
| Harmonic distortion | <1% 1kHz | —— | |||
| System connection control contact output/input | System fault relay output | Short circuit, no voltage | |||
| Emergency mode relay output | Short circuit, no voltage | ||||
| Fire reset input | Short circuit, t≥0.5S, no voltage | ||||
| 8 channel dry contact output | Short circuit, no voltage | ||||
| 8 dry contact input | Short circuit mode | Short circuit input, no voltage | |||
| Level mode | 3.3V~24V | ||||
| Voice message | Data format | WAV | —— | ||
| Storage form | SD card | —— | |||
| Storage time | >10 years | —— | |||
| Working power | AC | AC 220V/50Hz | |||
| DC | DC 24V/30A | ||||
| Package size (L*W*H) | 550×510×215mm | ||||
| Machine size (L*W*H) | 483×420×132mm | ||||
| G.W. | 14kg | 13.3kg | |||
| N.W. | 12.05kg | 11.75kg | |||
