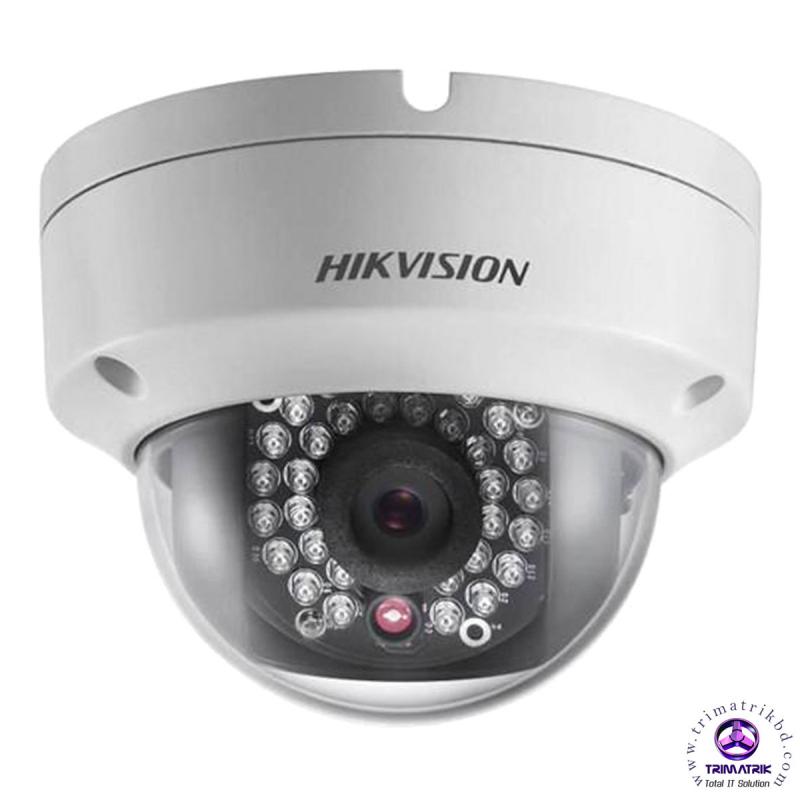

Hikvision DS-2CD2110F-I 1.3MP Fixed Dome Network Camera
Call for Price
- Up to 1.3 megapixel (1280 × 960) resolution
- Standard video compression with high compression ratio, ROI (region of interest) encoding
- Progressive scan CMOS, capture motion video without incised margin
- Support dual stream, and the sub-stream for mobile surveillance
- High-performance and long service life infrared LED, Approx. 10 to 30 meters IR range
- IR cut filter with auto switch
- PoE (Power over Ethernet)
- Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
- Impact Protection: IK08
- Other functions: rotate mode, alarm, mirror, reset button, etc
- Support intrusion detection, line crossing detection
- Support VCA, which is compatible with NVR for the second time of video searching and analysing
Description
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/3″ Progressive Scan CMOS |
| Signal System: | | | PAL/NTSC |
| Min. Illumination: | | | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR 0.028 Lux @ (F2.0, AGC ON) ,0 Lux with IR |
| Shutter time: | | | 1/3 s to 1/100,000 s |
| Lens: | | | 4mm@ F2.0 (2.8mm, 6mm optional) |
| Lens Mount: | | | M12 |
| Adjustment Range: | | | Pan:0° – 355°, Tilt: 0° – 75°, Rotation: 0-355° |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | Digital WDR |
| Digital noise reduction: | | | 3D DNR |
| Compression Standard | ||
| Video Compression: | | | H.264/MJPEG |
| H.264 code profile: | | | Baseline Profile / Main Profile |
| Video bit rate: | | | 32Kbps~8Mbps |
| Audio Compression: | | | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate: | | | 64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2) |
| Dual Stream: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 1280×960 |
| Frame Rate: | | | 50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720) 60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720) |
| Image Settings: | | | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC: | | | Yes, zone configurable |
| ROI: | | | support |
| 3D DNR: | | | support |
| Network | ||
| Network Storage: | | | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger: | | | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols: | | | TCP/IP, UDP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
| General Function: | | | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
| System Compatibility: | | | ONVIF, PSIA, CGI, ISAPI |
| Interface | ||
| Audio: | | | 1-ch audio in, Mic in/Line in; 1-ch audio out |
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
| Alarm: | | | 1 alarm I/O |
| Alarm Input: | | | 1 |
| Alarm Output: | | | 1 |
| On-board storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Wi-Fi Specification (-W) | ||
| Wireless Standards: | | | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range: | | | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth: | | | 20/40MHz Support |
| Modulation Mode: | | | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
| Security: | | | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate: | | | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps |
| Wireless Range: | | | 50m(depend on environment) |
| Protocols: | | | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | | | 12 V DC ± 10%, PoE (802.3at) |
| Power Consumption: | | | Max. 5W |
| Impact Protection: | | | IEC60068-2-75Eh, 50J; EN50102, IK10 |
| Weather Proof: | | | IP67 |
| IR Range: | | | Up to 30m |
| Dimensions: | | | Φ111 × 82 (4.4” × 3.2”) |
| Weight: | | | 500g (1.1 lb) |
