HikvisionDS 2CD2622FWD I

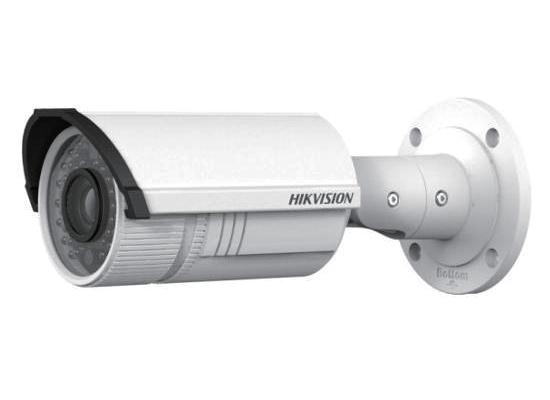

Hikvision DS-2CD2622FWD-I(Z)(S) 2MP WDR Vari-focal Bullet Network Camera

Hikvision DS-2CD2622FWD-I(Z)(S) 2MP WDR Vari-focal Bullet Network Camera

Call for Price

Description

Camera
Image Sensor: | 1/2.8″ Progressive Scan CMOS
Min. Illumination: | 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter time: | 1/3 s ~ 1/10,000 s
Slow shutter: | Support
Lens: | 2.8 – 12 mm @ F1.4, motorized lens (-Z), angle of view: 106°~35°
Lens Mount: | φ14
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | 120 dB
Digital noise reduction: | 3D DNR
Compression Standard
Video Compression: | H.264/MJPEG/H.264+
H.264 code profile: | Main Profile
Video bit rate: | 32Kbps~16Mbps
Audio Compression: | -S: G.711/G.722.1/G.726/MP2L2
Max. Image Resolution: | 1920 x 1080
Frame Rate: | 50Hz: 25fps(1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Image Enhancement: | BLC/3D DNR/ROI
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Day/Night Switch: | Auto/Schedule/Triggered by Alarm In
Network
Network Storage: | Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS)
Alarm Trigger: | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering, Anonymous access
System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface
General
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: | Max. 5.5 W (Max. 7.5 W with IR cut filter on)
Weather Proof: | IP67
IR Range: | Approx 20 to 30 meters(65.6-98.4ft)
Dimensions: | 95×105×258.6 mm (3.74” × 4.13” × 10.18”)
Weight: | 1200g (2.65 lbs)
NOTE：: | * “-S” series support 1-ch audio I/O and 1-ch alarm I/O
