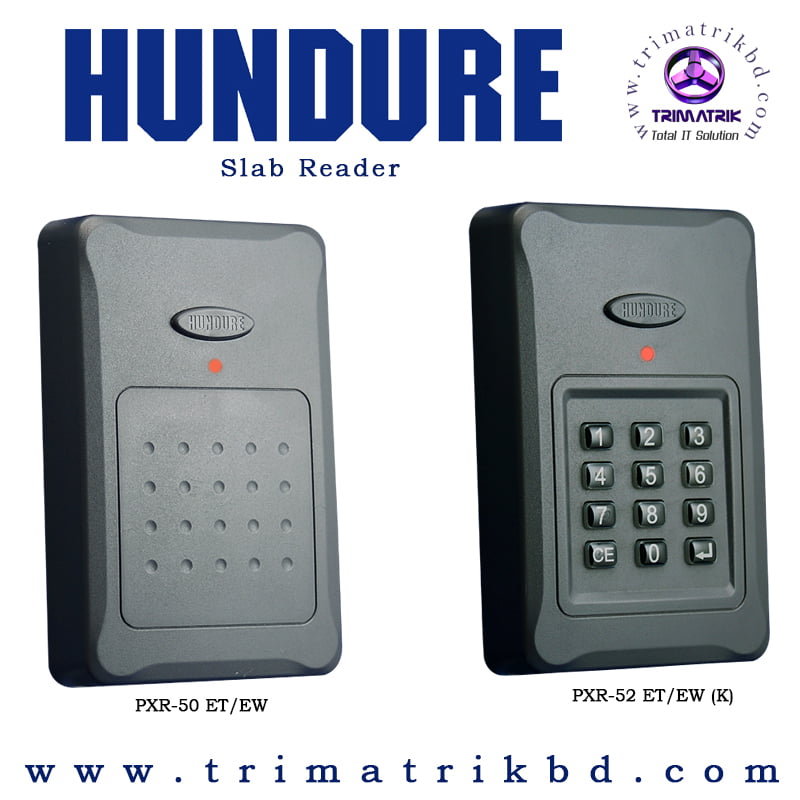

Hundure PXR-52 EM Slab Reader
Call for Price
- Support 125 KHz-EM card
- Reading distances are around 8~10 cm
- Case sensor detection function
- Watchdog function secures system free from halting
- Special model to provide both T2 and Wiegand interface, it allows customer to use more flexible.
- Keypad function. When work with controller, it provides swipe card, press card number by keypads or card with password to access.(PXR-52ETWK)
- Rubber keypads material with waterproof design.(PXR-52ETWK)
- Wide operation temperature range, it can be install in different arctic or tropical regions.
Description
Model No. | PXR-52ETW | PXR-52ETWK |
Read Format | EM (125KHz) | |
Read Range | 8-10 cm(max) | |
Comm. Interface | T2 / Wiegand | |
Keypad |
NONE |
12 Key ( 0-9, CE, Enter ) |
Input Port |
Case Sensor x 1 |
|
ID Setting | NONE | |
Comm. Baudrate | NONE | |
LED Indicator | Power / Comm. | |
Beep Tone | Buzzer | |
Power Input | DC12V / 1A | |
Current Consumption | 200mA (max) | |
Operating Temp. | -10° C ~ 70° C / 14° F ~ 158° F | |
Relative Humidity | 20% ~ 80%(Non-condensing) | |
Dimention (LxWxH)(mm) | 120 x 76 x 23 | |
Weight (Device) | 102g | 120g |
