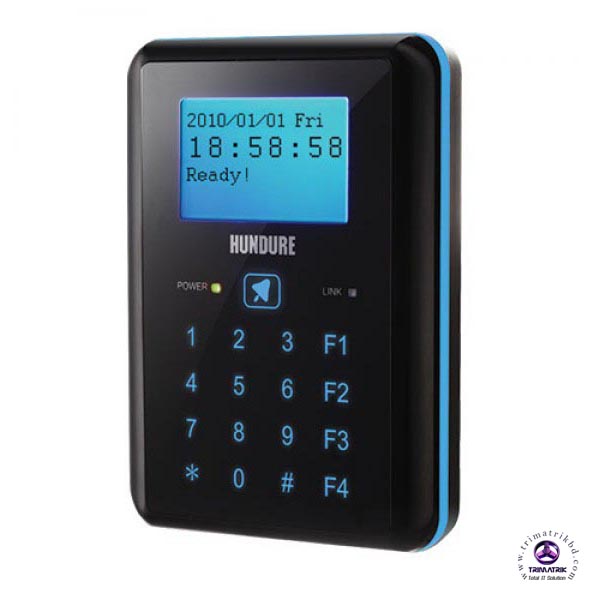

Hundure RAC-940 Access Control

Call for Price

  • Bell key design. Suit for various location.
  • Support network or standalone operation.
  • Blacklist to prevent unknown usage of lost card.
  • Casing tamper proof detection and door tamper alarm.
  • Support swipe card and card with pin codes enter modes.
  • Unique ID or Block read format supported. (RAC-940PM)
  • Slim, stylish design, sensitive touch keypad with blue backlight.
  • Dynamic control of memory up to 10,000 cardholders (max) / 10,000 events.
  • Built-in RS-232 & RS-485 communication interface to PC.
  • Programmable disarm code and able set maximum attempts to trigger re-swipe card alarm. The controller time-out function will avoid instruction in and has self security.
  • 8 sets siren output. (external connection via ACU-30). Provide 64 holiday schedules per year. (Able input date through software)
  • Able to connect external slave reader, type T1 / T2 / Wiegand. And support anti-passback to each single door.
  • Provide 16 time zones and time schedules, 8 time conditional unlock door schedules. (per week)
  • Display name on the LCD screen after swiped card. Function keys of access control and shifts which convenient to personnel to generate time attendance reports.
  • Memory buffer full warning. When memory capacity reaches 90%, it will send an alarm to remind the system administrator for data collection.
  • On-board lithium battery ensures data storage can reach up to 1 year upon power outage.



Description

Model No. RAC-940PE RAC-940PM
Read Format EM (125 KHz ) Mifare-1 (13.56MHz )
Read Range 8-10 cm (max) 3-5 cm (max )
Slave Reader

T2 or Wiegand ( 1 Set )

Input Ports 3 Sensors (Door Sensor x 1、Exit Button x 1、Case Sensor x 1)
Output Ports
(Built-in )
Relay x 1 ( Door Lock or Bell )
Output Ports
(External)
O.C. Output x 2 ( Door Lock / Alarm or Siren , external ACU-30 )
Cardholders 10,000 (max)
Events 10,000
LED Indicator Power / Comm.
LCD Display 128 x 64 Dot. Graphic Display with backlight
Keypad 17 Key (F1-F4, 0-9, *, #, Bell) (Waterproof Sensitive Touch Keypad)
Real Time Clock Yes
Beep Tone Buzzer
ID Setting Command setting by keypad
Water-proof IP X5
Power Input DC 12V / 1A
Current Consumption 500mA. (max. excluding slave reader)
Comm. Interface RS-232 / RS-485
Comm. Baudrate 9,600/19,200 bps-N-8-1
Operating Temp. 0° C ~ 55° C / 32° F ~ 131° F
Relative Humidity 20% ~ 80%(Non-condensing)
Dimension 130mm(L) x 100mm(W) x 27mm(H)
Weight (Device) 340g
