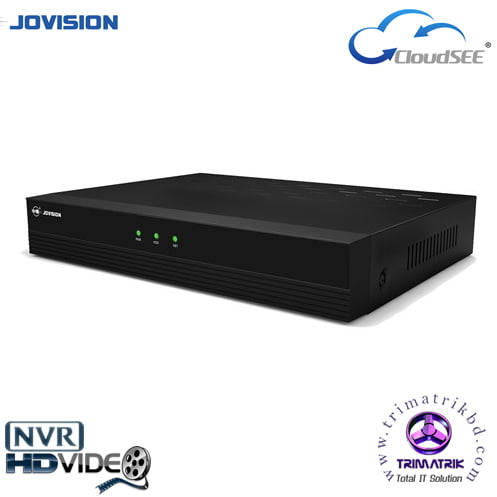

Jovision JVS-ND6004-H3 4CH NVR
Call for Price
The JVS-ND6004-H3 model NVR independently developed by Jovision, support cloudSEE and dual-stream technology, adopting H.264 compression algorithm and Linux real-time operating system. Video output transmit via HDMI ports with features of excellent connection rate, good transmission effect, easy operation, etc. It is optimal products for network remote monitoring, integrated with various practical functions, such as audio and video playback, network transmission, and alarm management. It is widely used in school, factory, supermarket, bank, traffic, community, warehouse, water conservancy and other fields.
Jovision NVR Features:
1.4CH 1080P access,1CH 1080P/1CH 960P playback capability ,
2.CloudSEE technology,one-key remote and network plug & play.
3.H.264 Video compression technology.
4.Support ONVIF ,compatible with other manufacturers IPC.
5.Support audio compression to achieve real-time video monitoring function.
6.search and add IPC automatically with zero operation.
7.Network Assistant,one-key IP set function.
8.Support motion detection ,4 privacy areas mask.
9.MP4 record file format.
Description
| Model/Specification | JVS-ND6004-H3 | |
| Input | Video Input | 4CH 1080P |
| Output | HDMI | 1CH，Resolution：1920×1080/60Hz、1440×900/60Hz、1366×768/60Hz、 1280×1024/60Hz、1280×800/60Hz、1024×768/60Hz |
| VGA | 1CH，Resolution：1920×1080/60Hz、1440×900/60Hz、1366×768/60Hz、 1280×1024/60Hz、1280×800/60Hz、1024×768/60Hz |
|
| Audio Output | Support | |
| Encoding | Record | 1920×1080/1280×960/1280×720/768×432/704×576 |
| Video Encoding | 4CH 1080P/4CH 960P/4CH 720P | |
| SyncPlayback | 1CH 1080P/1CH 960P | |
| Record | Record/Snapshot | Manual Record/Snapshot、Scheduled、Motion Detection Record/Snapshot、Alarm Record/Snapshot、Playback Snapshot |
| Playback Mode | Time List & Event Playback | |
| Backup Mode | Video Backup & Picture Backup | |
| HDD | Type | 1 pcs SATA Interface |
| Capacity | up to 4T/pcs | |
| External | Audio Intercom | Support |
| Net Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface | |
| Serial Interface | 1 RS485 Interface | |
| USB Interface | 2 USB 2.0 Interface | |
| Alarm In | N/A | |
| Alarm Output | N/A | |
| Network |
Protocol | TCP/IP、DHCP、UDP、SMTP、NTP、Cloudsee |
| General | Temperature | -10℃～+55℃ |
| Humidity | 10%～90% | |
| Power Supply | DC 12V | |
| Power | ≤15W | |
| Language | Multi-Languages | |
| Chassis | 1U Chassis | |
| Size(W×H×D) | 258×42×190mm | |
| Weight | ≤650g | |
