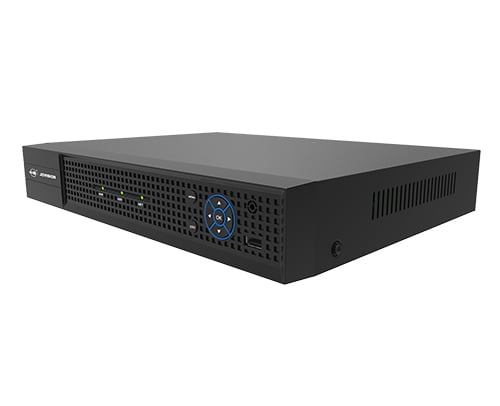

Jovision JVS-XD2804-HA11U bd 4CH Digital Video Recorder
Call for Price
Jovision JVS-XD2804-HA11U bd
Support H.264+（Quasi H.265） encoding, ultra-low bit rates, compatible with H.264 surroundings;
Support VGA, HDMI HD output simultaneously;
Support various mobile monitoring (IOS, android);
Support UTC, control signal& video stream transmit through one single coaxial;
Support AHD/TVI/CVI/CVBS/IP five signals;
Support multi-languages;
Support IVP;
Description
Jovision JVS-XD2804-HA11U bd
| Analog Camera Input | 4 Channel, BNC | |
| HDCVI Camera | 1080P@25/30fps, 720P@25/30fps | |
| AHD Camera | 4MP, 1080P@25/30, 720P@25/30fps | |
| TVI Camera | 1080P@25/30, 720P@25/30fps | |
| CVBS Camera | PAL/NTSC | |
| IP Camera Input | up to 1080P | |
| Video port configuration： |
Full HD： 4CH | |
| hybrid ：2CH+2CH | ||
| Full network：8CH | ||
| Audio In/Out | 4/1, RCA | |
| Two-way Talk | 1CH RCA | |
| Recording | Compression | H.264+/H.264 |
| Resolution | 4M-N, 1080N, 720P, WD1 | |
| Record Rate | Main stream: 4M-N(1~15fps),1080N(1~20fps),720P/960H/D1(1~22fps) | |
| Sub stream: D1/CIF(1~12fps) | ||
| Record Mode | Manual, Schedule (General, Continuous), MD (Motion Detection, Video Loss, IVP), | |
| Audio Compression | G.711U | |
| Display | Interface | 1 HDMI ,1 VGA |
| Resolution | 1280*1024，1024*768，1440*900，1920*1080 | |
| OSD | Device ID, Time, Record Setting, Alarm setup, Audio, Camera title | |
| Network | Interface | 1 RJ-45 Port (100M) |
| Network Function | TCP/IP, DHCP, DNS, DDNS, HTTPS,HTTP, | |
| Smart Phone | iPhone, Android | |
| Interoperability | ONVIF 2.4, CGI | |
| Playback and Backup | Playback | 4CH |
| Search Mode | Time /Date,MD , IVP, Auto, Scheduled | |
| Playback Function | Day view, Hour view, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Snap, Sound on/off, Zoom, Backup to U-Disk | |
| Backup Mode | USB | |
| Hard Disk Driver | Interface Type: | 1 SATA Interface |
| Capacity: | Up to 6 TB capacity for each disk | |
| General | Power Supply: | 12 VDC |
| Consumption: | ≤ 9 W | |
| Working Temperature: | 0℃~ +55℃ | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 345*275*75mm，(13.6*10.8*3.0 inch) | |
| Weight: | ≤ 1.4 kg (3.1 lb) |
