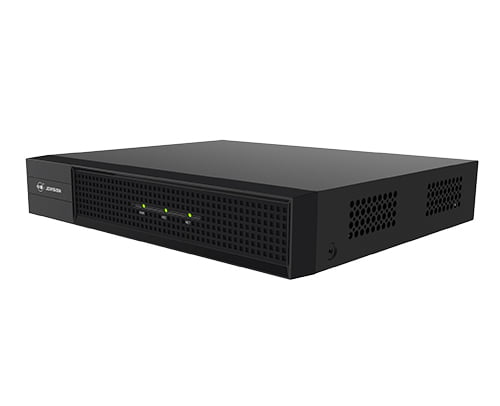

Jovision JVS-XD2808-HD12V 8CH Digital Video Recorder
Call for Price
Jovision JVS-XD2808-HD12V
Support H.264+（Quasi H.265） encoding, ultra-low bit rates, compatible with H.264 surroundings;
Support VGA, HDMI HD output simultaneously;
Support various mobile monitoring (IOS, android);
Support UTC, control signal& video stream transmit through one single coaxial;
Support AHD/TVI/CVI/CVBS/IP five signals;
Support multi- languages；
Support IVP;
Description
Jovision JVS-XD2808-HD12V
| JVS-XD2808-HD12V | ||
| Video and Audio |
Analog Camera | 8Channel, BNC |
| HDCVI Camera | 1080P@25/30fps, 720P@25/30fps | |
| AHD Camera | 4MP, 1080P@25/30, 720P@25/30fps | |
| TVI Camera | 1080P@25/30, 720P@25/30fps | |
| CVBS Camera | PAL/NTSC | |
| IP Camera Input | Up to 1080P | |
| Video port configuration |
Full HD： 8CH | |
| Hybrid ：4CH+4CH | ||
| Full network：16CH | ||
| Audio In/Out | 4/1, RCA | |
| Two-way Talk | 1CH RCA | |
| Recording | Compression | H.264+/H.264 |
| Resolution | 4M, 1080P, 1080N, 720P, WD1 | |
| Record Rate | Main stream:4M(1~15fps),1080P(1~18fps), 1080N/720P/960H/D1(1~20fps） |
|
| Sub stream: D1/CIF(1~12fps) | ||
| Record Mode | Manual, Schedule (General, Continuous), MD (Motion Detection, Video Loss,IVP), | |
| Audio Compression | G.711U | |
| Display | Interface | 1 HDMI ,1 VGA |
| Resolution | 1280*1024，1024*768，1280*800，1440*900，1920*1080 | |
| OSD | Device ID, Time, Record Setting, Alarm setup, Audio, Camera title | |
| Network | Interface | 1 RJ-45 Port (100M) |
| Network Function | TCP/IP, DHCP, DNS, DDNS, HTTPS,HTTP, RTSP,NTP | |
| Smart Phone | iPhone ,Android | |
| Interoperability | ONVIF 2.4, CGI t | |
| Playback and Backup |
Playback | 8CH |
| Search Mode | Time /Date, MD , IVP, Auto, Scheduled | |
| Playback Function | Day view, Hour view, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step,Snap, Sound on/off, Zoom, Backup to U-Disk | |
| Backup Mode | USB | |
| Hard Disk Driver |
Interface Type | 1 SATA Interface |
| Capacity | Up to 6 TB capacity for each disk | |
| General | Power Supply | 12 VDC |
| Consumption | ≤ 10W | |
| Working | 0℃~ +55℃ | |
| Working Humidity | 10% to 90% | |
| Dimensions | 345*275*75mm，(13.6*10.8*3.0 inch) | |
| Weight | ≤ 1.4 kg (3.1 lb) | |
