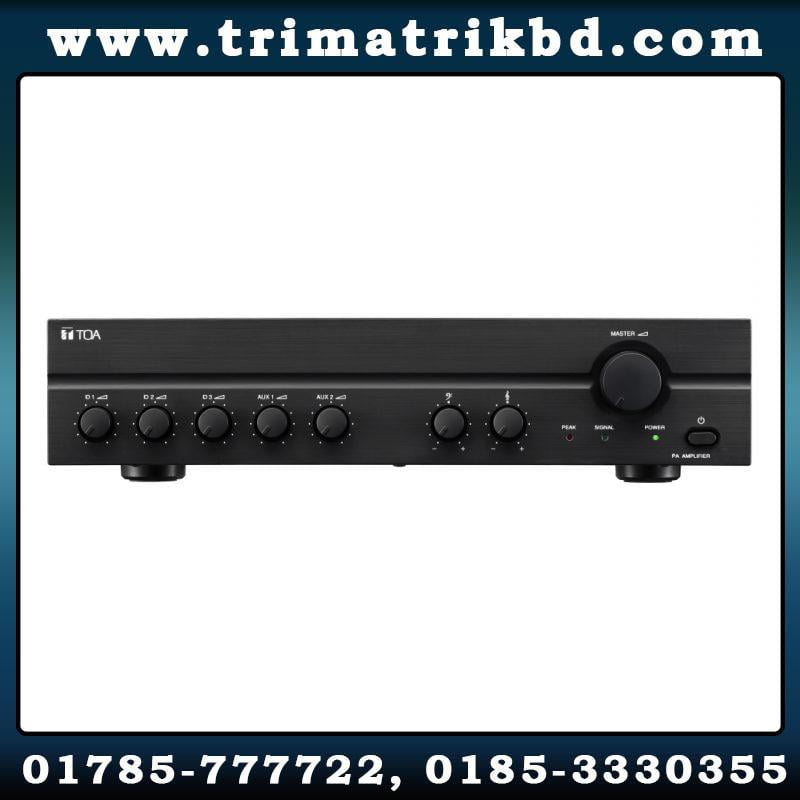

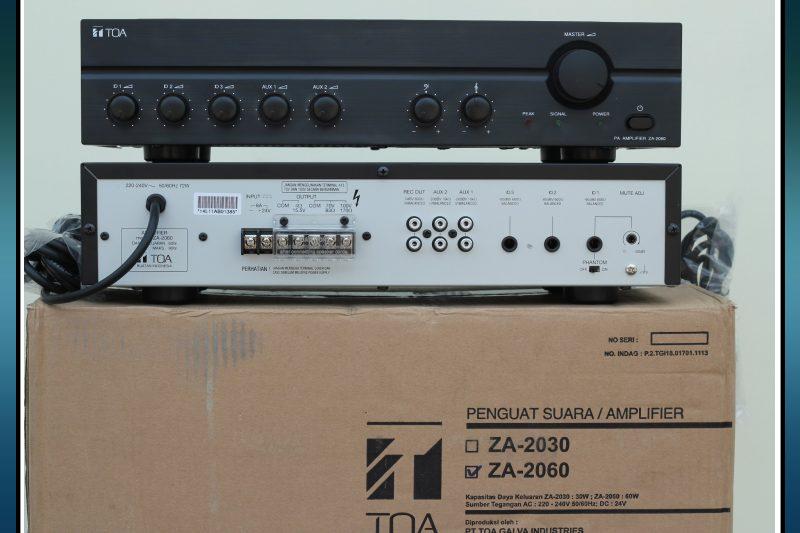

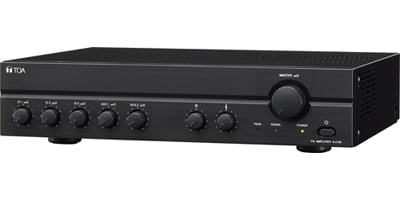

TOA A-2060 Mixer Power Amplifier

Call for Price

The A-2060 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.

Description

TOA A-2060 Mixer Power Amplifier Bangladesh

Power Source 220 V AC, or 24 V DC
Rated Output 60 W
Power Consumption 72 W (EN60065), 4 A (DC operation at rated output)
Frequency Response 50 – 20,000 Hz (±3 dB)
Distortion 1% or less at 1 kHz, 1/3 rated power
Input MIC 1 – 3: -60 dB*, 600 Ω, balanced, equivalent to XLR-3-31 type
AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack
Mute: Contact screw terminal (for MIC 1)
Output Speaker out: Balanced (floating), M3.5 screw terminal,
distance between barriers: 8.3 mm (0.33″)
High impedance: 170 Ω (100 V), 83 Ω (70 V)
Low impedance: 4 Ω (15.5 V)
Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jackTOA A-2060 Mixer Power Amplifier Bangladesh
Phantom Power DC +21 V (MIC 1)
S/N Ratio 60 dB or more
Tone Control Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Muting MIC 1 overrides other input signals with 0 – 30 dB attenuation by mute terminal
contact.
Finish Panel: ABS resin, black
Case: Steel plate, black
Dimensions 420 (W) × 100.9 (H) × 280.3 (D) mm (16.54″ × 3.97″ × 11.04″)
Weight 7 kg (15.43 lb)

TOA A-2060 Mixer Power Amplifier Bangladesh

TOA A-2060 Mixer Power Amplifier Bangladesh

TOA A-2060 Mixer Power Amplifier Bangladesh
TOA A-2060 Mixer Power Amplifier Bangladesh

Microphones, amplifiers, speakers, megaphones, background music facilities, emergency PA and General-purpose PA systems, automatic announcement systems, conference systems, railway car PA systems, TOA A-2060 Mixer Power Amplifier Bangladesh

  • Production and sales of public and broadcasting equipment, communications equipment and other information transmission equipment
  • Production and sales of audio and visual equipment and other electrical and electronic devices
  • Rental, design and installation of above equipment
  • Planning, production and sales of audio and video software
  • Provider of various telecommunications services
  • Telecommunications business
  • Rental and management of performance halls and studios, as well as planning and management of musical events
