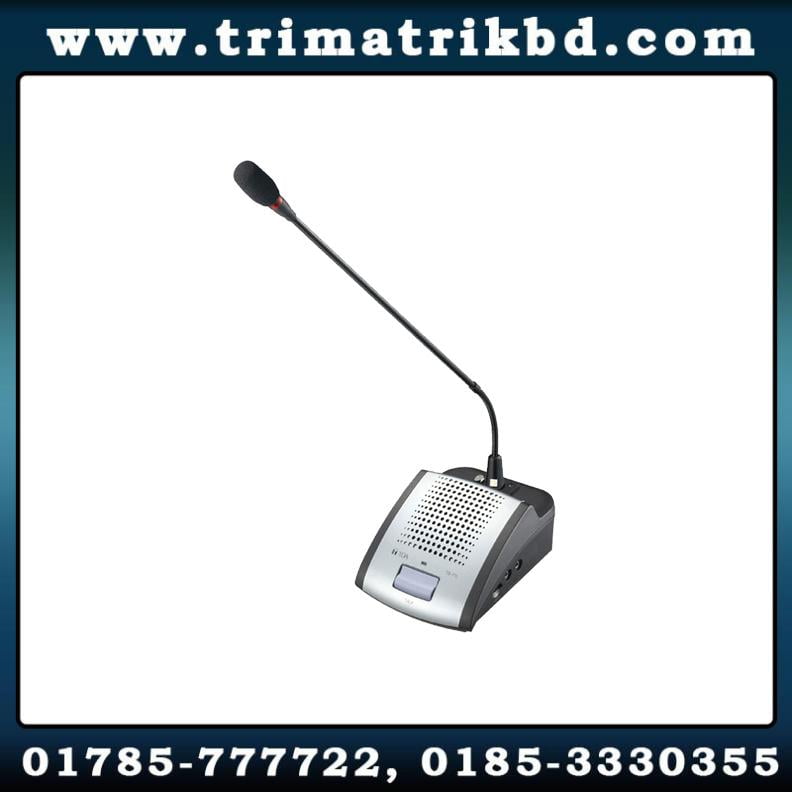

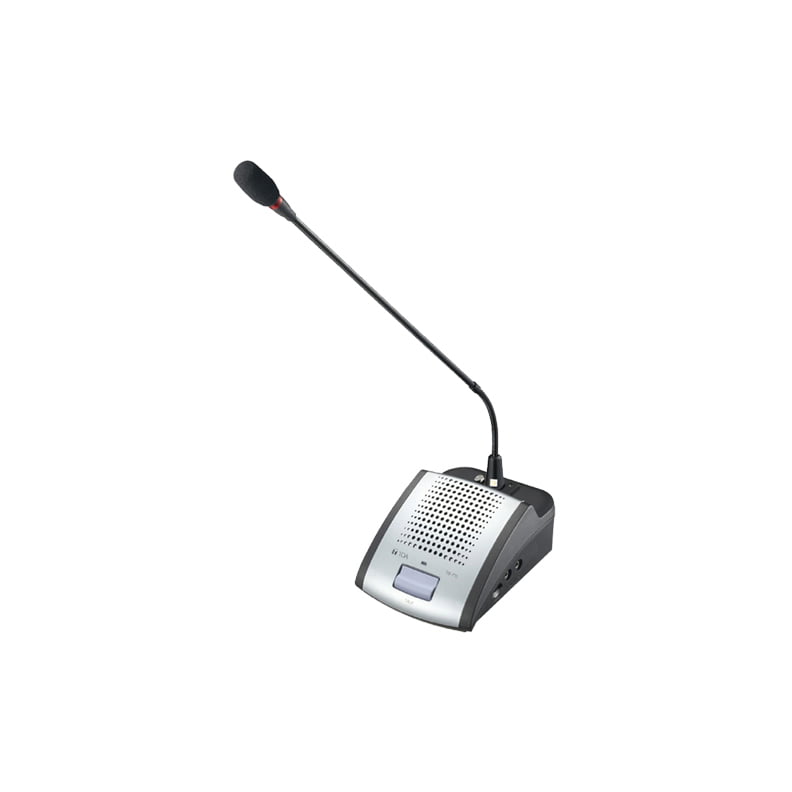

TOA TS-772 Delegate Unit for TOA Conference System
Call for Price
The TS-772 is a Delegate unit for TOA Conference system, of which compact and lightweight design makes it easy to install and store. Placing the speech button in the ON position permits speech and disables the speaker to prevent feedback. If the speech button is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing the voices from other conference units to be monitored. Two types of dedicated microphones are made available for the TS-772 as optional products: the TS-773 standard type and the TS-774 long type.
Description
TOA TS-772 Delegate Unit for TOA Conference System in Bangladesh
The TS-772 is a Delegate unit for TOA Conference system, of which compact and lightweight design makes it easy to install and store. Placing the speech button in the ON position permits speech and disables the speaker to prevent feedback. If the speech button is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing the voices from other conference units to be monitored. Two types of dedicated microphones are made available for the TS-772 as optional products: the TS-773 standard type and the TS-774 long type.
TOA TS-772 Bangladesh
|
Power Source |
35 V DC, under 30 mA (supplied from Central Unit) |
|
Output |
Headphone/Recording: 32 Ω (headphone)/10 kΩ, -20 dB* (recording), unbalanced, mini jack (with VR) Internal speaker: 130 Ω, 200 mW Contact output: 24 V DC, max. 50 mA |
|
Control |
Microphone, speaker on-off control by speech switch |
|
Operating Temperature |
0℃ to +40℃ (32゜F to 104゜F) |
|
Operating Humidity |
Under 90% RH (no condensation) |
|
Finish |
Case: ABS resin, black Panel: ABS resin, gray metallic, semi-gloss, paint |
|
Dimensions |
114.5 (W) × 78.4 (H) × 152.9 (D) mm (4.51″ × 3.09″ × 6.02″) |
|
Weight |
780 g (1.72 lb) |
|
Option |
Microphone: TS-773 (standard), TS-774 (long) (select either one) |
